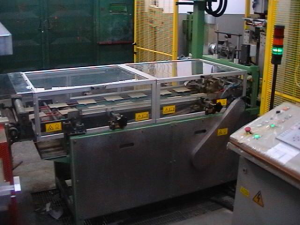

DIVIDER EXMET30 DEXM30
The DEXM30 is specifically for use on exmet lines with a speed of up to 30 meters per minute. The cutting operation is entirely automatic and the cutting takes place through the use of independent holding and cutting blades. Easily adapted during operation in order to permit exact and constant cutting on the nodes. The station includes an outlet conveyor in order to allow the slight opening of the cut plates for presentation to the flash drying oven. The outlet conveyor includes a small roller to flatten any plates that have warped during the pasting or cutting process.
General Characteristics
Support structure realised entirely in Fe 37 and painted as per Client request.
CE Compliant Safety Guards
Suitable for use with all exmet strip made from Reciprocator machines
Remote and Local Control of Station through Industrial plc Interface for line management and SCADA apps
Dimensions (L*W*H) : depends on layout
Electrical : 380V 3ph +PE – 50Hz (others on request)
Station Logic : SIEMENS S7 / Allen Bradley (others on request) OP: SIEMENS OP3
Electrical Components : SIEMENS / TELEMECANIQUE
Power Consumption: < 15kW installed (standard)
Ship Weight: 1200kgs
Pneumatic: 6 Ba
Capacity: up to 30 meters per minute
PLATE STACKER PSEXM30
The plate stacker is specifically adapted for use with ex-met plates from all types of manufacturing processes. Suitable for use with ‘Soft’ exmet plates due to the correct alignment during conveying and stacking.
Various worldwide installations prove the efficiency and reliability of this stacker and solve the problems regarding the use of paper on plates, which may create problems in the stacking process. The plates are presented in a correct way in order to eliminate the need for front and lateral aligning pistons, which may damage the plates being stacked. Ease of use and ease of access to the stacking group allow quick solving to all problems encountered during operation.
General Characteristics:
Support structure realised in Fe 37 and protections in AISI 304L.
CE Compliant Safety Guards
Remote and Local Control through Industrial plc Interface for line management and SCADA apps.
Technical Information:
Dimensions (L*W*H) : 1800mm*1000mm*1600mm
Electrical : 380V 3ph +PE – 50Hz (others on request)
Station Logic : SIEMENS S7 / Allen Bradley Op: Siemens OP17A
Electrical Components : SIEMENS / TELEMECANIQUE
Power Consumption: < 4kW installed
Ship Weight: 400kgs
Pneumatic: 6 Bar
Capacity: up to 360 single plates per minute Capacity: 4-16 full and empty pallets

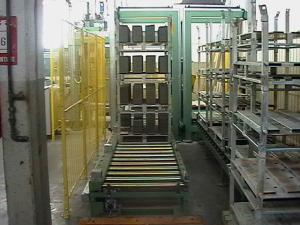

PALETIZER PLATES PEXM30
The palletiser is the right choice for the palletising operation of plates from the pasting line.
International manufacturers are continuously looking for ways to reduce workforce on the factory floor. This system, along with one of our stackers (or an existing one), allows the removal of personnel from the line. Specifically adapted both to floor space available and pallet type used.
The PP24 uses encoders on all three axis and recipe management for the palletising of different types of plates. A reliable and constant operation through the complete use of original certified parts.
General Characteristics:
Support structure realised entirely in Fe37 and painted as per Client request.
CE Compliant Safety Guards
Suitable for existing pasting lines
Remote and Local Control of Station through Industrial plc Interface for line management and SCADA apps.
Technical Information:
Dimensions (L*W*H) : depends on layout
Electrical : 380V 3ph +PE – 50Hz (others on request)
Station Logic : SIEMENS S7 / Allen Bradley (others on request)
OP: SIEMENS OP77A
Electrical Components : SIEMENS / TELEMECANIQUE
Power Consumption: < 15kW installed (standard)
Ship Weight: 1200kgs pneumatic: 6 Bar
