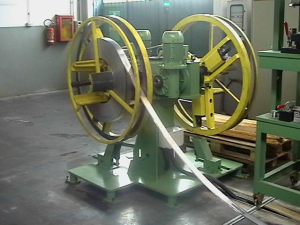

LEAD STRIP DECOILER

Support structure realised entirely in Fe 37 and painted as per Client request.
Two 1.5kW Motors for uncoiling operation
Pneumatic Piston for rotation of station to permit coil loading
CE Compliant Safety Guards
Suitable for use with all coils made from Rolling Mills
Remote and Local Control of Station through Industrial plc Interface.
Suitable for Lines of upto 40mt/min.
Technical Information:
Dimensions (L*W*H) : 1500mm*1500mm*1700mm
Electrical : 380V 3ph +PE – 50Hz (others on request)
Power Consumption: < 2kW installed
Ship Weight: 800kgs
Pneumatic: 6 Bar
This station is responsible for the decoiling operation of coils of lead strip previously supplied from the rolling mill. Part of a complete line proposed by omr, the station can be adapted to existing installations if required. Operation of the station is though the use of a small pedestal control box located near the station and permits the operator to unload empty coils and load new coils to be used in the Expanded Metal Station. The station is supplied with all necessary controls for a safe . constant and reliable operation.

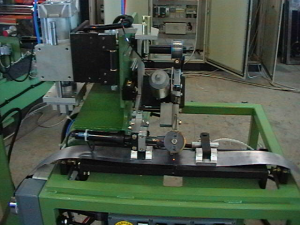

LEAD STRIP WELDER

Support structure realised02_02e_Exmet entirely in Fe 37 and painted as per Client request.
CE Compliant Safety Guards Suitable for use with all coils made from Rolling Mills
Remote and Local Control of Station through Industrial plc Interface
Suitable for All lines and speeds
Technical Information:
Dimensions (L*W*H) : 1200mm*800mm*1300mm
Electrical : 380V 3ph +PE – 50Hz (others on request)
Power Consumption: < 4kW installed
Ship Weight: 220kgs
Pneumatic: 6 Bar
This station permits the Line Operator to safely and surely weld together the tail of one coil with the head of a new coil therby eliminating line down time due to coil changeover.
The operation is stragiht forward and simple through the use of cold fusion of the two parts. Part of a complete line proposed by, the station can be adapted to existing installations if required. The station is supplied with all necessary controls for a safe constant and reliable operation.
